CrystalDiskMark

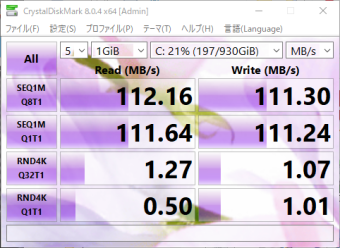

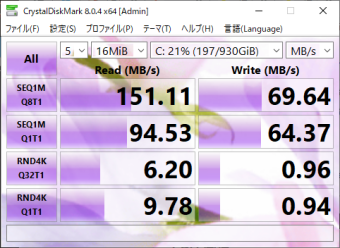

Seagate ST1000LM014-1EJ164 (Firmware: SM30)
CrystalDiskInfo
---------------------------------------------------------------------------- CrystalDiskInfo 7.7.0 (C) 2008-2018 hiyohiyo Crystal Dew World : https://crystalmark.info/ ---------------------------------------------------------------------------- OS : Windows 10 Professional [10.0 Build 19041] (x64) Date : 2021/12/28 12:34:46 -- Controller Map ---------------------------------------------------------- + 標準 SATA AHCI コントローラー [ATA] - ST1000LM014-1EJ164 - HL-DT-ST DVDRAM GT60N - Microsoft 記憶域コントローラー [SCSI] -- Disk List --------------------------------------------------------------- (1) ST1000LM014-1EJ164 : 1000.2 GB [0/0/0, pd1] - st (2) WDC WD20EZRZ-22Z5HB0 : 2000.3 GB [1/0/0, sa1] - wd ---------------------------------------------------------------------------- (1) ST1000LM014-1EJ164 ---------------------------------------------------------------------------- Model : ST1000LM014-1EJ164 Firmware : SM30 Serial Number : W772BR1V Disk Size : 1000.2 GB (8.4/137.4/1000.2/1000.2) Buffer Size : 不明 Queue Depth : 32 # of Sectors : 1953525168 Rotation Rate : 5400 RPM Interface : Serial ATA Major Version : ACS-2 Minor Version : ACS-3 Revision 3b Transfer Mode : SATA/600 | SATA/600 Power On Hours : 3497 時間 Power On Count : 2314 回 Temperature : 45 C (113 F) Health Status : 正常 Features : S.M.A.R.T., APM, 48bit LBA, NCQ APM Level : 8080h [ON] AAM Level : ---- Drive Letter : C: -- S.M.A.R.T. -------------------------------------------------------------- ID Cur Wor Thr RawValues(6) Attribute Name 01 111 _99 __6 00000220A868 リードエラーレート 03 _98 _98 __0 000000000000 スピンアップ時間 04 _99 _99 _20 0000000004B6 スタート/ストップ回数 05 100 100 _10 000000000000 代替処理済のセクタ数 07 _74 _60 _30 0002035EFDCA シークエラーレート 09 _97 _97 __0 000000000DA9 使用時間 0A 100 100 _97 000000000000 スピンアップ再試行回数 0C _98 _98 _20 00000000090A 電源投入回数 B8 100 100 _99 000000000000 エンドツーエンドエラー BB _99 _99 __0 000000000001 報告された訂正不可能エラー BC 100 _98 __0 00000000001F コマンドタイムアウト BD 100 100 __0 000000000000 High Fly Writes BE _55 _48 _45 00002D16002D エアフロー温度 BF 100 100 __0 000000000000 衝撃によって発生したエラーレート C0 100 100 __0 000000000000 電源断による磁気ヘッド退避回数 C1 _51 _51 __0 0000000181BB ロード/アンロードサイクル回数 C2 _45 _52 __0 000C0000002D 温度 C5 100 100 __0 000000000000 代替処理保留中のセクタ数 C6 100 100 __0 000000000000 回復不可能セクタ数 C7 200 200 __0 000000000001 UltraDMA CRC エラー数 FE 100 100 __0 000000000000 落下保護 -- IDENTIFY_DEVICE --------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 000: 0C5A 3FFF C837 0010 0000 0000 003F 0000 0000 0000 010: 2020 2020 2020 2020 2020 2020 5737 3732 4252 3156 020: 0000 0000 0004 534D 3330 2020 2020 5354 3130 3030 030: 4C4D 3031 342D 3145 4A31 3634 2020 2020 2020 2020 040: 2020 2020 2020 2020 2020 2020 2020 8010 4000 2F00 050: 4000 0200 0200 0007 3FFF 0010 003F FC10 00FB 0110 060: FFFF 0FFF 0000 0007 0003 0078 0078 0078 0078 0000 070: 0000 0000 0000 0000 0000 001F 8F0E 0006 004C 0040 080: 03F0 001F 346B 7D09 6163 3469 BC09 6163 207F 005D 090: 005D 8080 FFFE 0000 FE00 0000 0000 0000 0000 0000 100: 6DB0 7470 0000 0000 0000 0000 6003 0000 5000 C500 110: 8B4C 07E4 0000 0000 0000 0000 0000 0000 0000 401E 120: 401C 0000 0000 0000 0000 0000 0000 0000 0029 6DB0 130: 7470 6DB0 7470 2020 0002 0140 0108 5000 3C06 3C0A 140: 0000 003C 0000 0008 0000 0000 05FF 0280 0000 0000 150: 0008 0000 0000 0000 0000 0001 0000 0000 7200 8006 160: 0000 0000 0000 0000 0000 0000 0000 0000 0003 0000 170: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 180: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 190: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 200: 0000 0000 0000 0000 0000 0000 10B1 0000 0000 4000 210: 0000 0000 0000 0000 0000 0000 0000 1518 0000 0000 220: 0000 0000 107E 0000 0000 0000 0000 0000 0000 0000 230: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 240: 0000 0000 0000 0003 0000 0000 0000 0000 0000 0000 250: 0000 0000 0000 0000 0000 B9A5 -- SMART_READ_DATA --------------------------------------------------------- +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 000: 0A 00 01 0F 00 6F 63 68 A8 20 02 00 00 00 03 03 010: 00 62 62 00 00 00 00 00 00 00 04 32 00 63 63 B6 020: 04 00 00 00 00 00 05 33 00 64 64 00 00 00 00 00 030: 00 00 07 0F 00 4A 3C CA FD 5E 03 02 00 00 09 32 040: 00 61 61 A9 0D 00 00 00 00 00 0A 13 00 64 64 00 050: 00 00 00 00 00 00 0C 32 00 62 62 0A 09 00 00 00 060: 00 00 B8 32 00 64 64 00 00 00 00 00 00 00 BB 32 070: 00 63 63 01 00 00 00 00 00 00 BC 32 00 64 62 1F 080: 00 00 00 00 00 00 BD 3A 00 64 64 00 00 00 00 00 090: 00 00 BE 22 00 37 30 2D 00 16 2D 00 00 00 BF 32 0A0: 00 64 64 00 00 00 00 00 00 00 C0 32 00 64 64 00 0B0: 00 00 00 00 00 00 C1 32 00 33 33 BB 81 01 00 00 0C0: 00 00 C2 22 00 2D 34 2D 00 00 00 0C 00 00 C5 12 0D0: 00 64 64 00 00 00 00 00 00 00 C6 10 00 64 64 00 0E0: 00 00 00 00 00 00 C7 3E 00 C8 C8 01 00 00 00 00 0F0: 00 00 FE 32 00 64 64 00 00 00 00 00 00 00 00 00 100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 160: 00 00 00 00 00 00 00 00 00 00 00 00 8B 00 00 73 170: 03 00 01 00 01 C1 02 00 00 00 00 00 00 00 00 00 180: 00 00 00 00 00 00 00 00 02 02 02 02 02 02 02 02 190: 02 00 00 00 00 00 00 00 00 01 00 00 00 00 00 00 1A0: 00 00 00 00 00 00 00 00 1A 83 84 C7 73 0B 00 00 1B0: 00 00 00 00 01 00 02 0D 67 2B 95 D1 06 00 00 00 1C0: 7A F1 5C 66 07 00 00 00 00 00 00 00 00 00 00 00 1D0: 00 00 00 00 00 00 00 00 ED 1C 00 00 01 00 00 00 1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F0: 00 00 00 00 00 00 00 00 00 00 14 15 2D 00 00 0D -- SMART_READ_THRESHOLD ---------------------------------------------------- +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 000: 01 00 01 06 00 00 00 00 00 00 00 00 00 00 03 00 010: 00 00 00 00 00 00 00 00 00 00 04 14 00 00 00 00 020: 00 00 00 00 00 00 05 0A 00 00 00 00 00 00 00 00 030: 00 00 07 1E 00 00 00 00 00 00 00 00 00 00 09 00 040: 00 00 00 00 00 00 00 00 00 00 0A 61 00 00 00 00 050: 00 00 00 00 00 00 0C 14 00 00 00 00 00 00 00 00 060: 00 00 B8 63 00 00 00 00 00 00 00 00 00 00 BB 00 070: 00 00 00 00 00 00 00 00 00 00 BC 00 00 00 00 00 080: 00 00 00 00 00 00 BD 00 00 00 00 00 00 00 00 00 090: 00 00 BE 2D 00 00 00 00 00 00 00 00 00 00 BF 00 0A0: 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 0B0: 00 00 00 00 00 00 C1 00 00 00 00 00 00 00 00 00 0C0: 00 00 C2 00 00 00 00 00 00 00 00 00 00 00 C5 00 0D0: 00 00 00 00 00 00 00 00 00 00 C6 00 00 00 00 00 0E0: 00 00 00 00 00 00 C7 00 00 00 00 00 00 00 00 00 0F0: 00 00 FE 00 00 00 00 00 00 00 00 00 00 00 00 00 100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 89 ---------------------------------------------------------------------------- (2) WDC WD20EZRZ-22Z5HB0 ---------------------------------------------------------------------------- Enclosure : I-O DATA HDCZ-UT USB Device (V=04BB, P=016C, sa1) - wd Model : WDC WD20EZRZ-22Z5HB0 Firmware : 80.00A80 Serial Number : WD-WCC4M7UF94UT Disk Size : 2000.3 GB (8.4/137.4/2000.3/2000.3) Buffer Size : 不明 Queue Depth : 32 # of Sectors : 3907029168 Rotation Rate : 5400 RPM Interface : USB (Serial ATA) Major Version : ACS-2 Minor Version : ---- Transfer Mode : SATA/300 | SATA/600 Power On Hours : 15933 時間 Power On Count : 329 回 Temperature : 30 C (86 F) Health Status : 正常 Features : S.M.A.R.T., 48bit LBA, NCQ APM Level : ---- AAM Level : ---- Drive Letter : E: -- S.M.A.R.T. -------------------------------------------------------------- ID Cur Wor Thr RawValues(6) Attribute Name 01 200 200 _51 000000000000 リードエラーレート 03 177 171 _21 00000000101D スピンアップ時間 04 _98 _98 __0 00000000089E スタート/ストップ回数 05 200 200 140 000000000000 代替処理済のセクタ数 07 200 200 __0 000000000000 シークエラーレート 09 _79 _79 __0 000000003E3D 使用時間 0A 100 100 __0 000000000000 スピンアップ再試行回数 0B 100 100 __0 000000000000 キャリブレーション再試行回数 0C 100 100 __0 000000000149 電源投入回数 C0 200 200 __0 0000000000E0 電源断による磁気ヘッド退避回数 C1 194 194 __0 0000000050C7 ロード/アンロードサイクル回数 C2 117 _98 __0 00000000001E 温度 C4 200 200 __0 000000000000 セクタ代替処理発生回数 C5 200 200 __0 000000000000 代替処理保留中のセクタ数 C6 200 200 __0 000000000000 回復不可能セクタ数 C7 200 200 __0 000000000000 UltraDMA CRC エラー数 C8 200 200 __0 000000000000 ライトエラーレート -- IDENTIFY_DEVICE --------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 000: 427A 3FFF C837 0010 0000 0000 003F 0000 0000 0000 010: 2020 2020 2057 442D 5743 4334 4D37 5546 3934 5554 020: 0000 0000 0000 3830 2E30 3041 3830 5744 4320 5744 030: 3230 455A 525A 2D32 325A 3548 4230 2020 2020 2020 040: 2020 2020 2020 2020 2020 2020 2020 8010 4000 2F00 050: 4001 0000 0000 0007 3FFF 0010 003F FC10 00FB 0100 060: FFFF 0FFF 0000 0007 0003 0078 0078 0078 0078 0000 070: 0000 0000 0000 0000 0000 001F 970E 0004 004C 0040 080: 03FE 0000 746B 7D61 4123 7469 BC41 4123 407F 0088 090: 0088 0000 FFFE 0000 0000 0000 0000 0000 0000 0000 100: 88B0 E8E0 0000 0000 0000 0000 6003 0000 5001 4EE2 110: BAFB D315 0000 0000 0000 0000 0000 0000 0000 401C 120: 401C 0000 0000 0000 0000 0000 0000 0000 0021 0400 130: 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 140: 0000 0000 0004 0000 0000 0000 0000 0000 0000 0000 150: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 160: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 170: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 180: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 190: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 200: 0000 0000 0000 0000 0000 0000 7035 0000 0000 0000 210: 0000 0000 0000 0000 0000 0000 0000 1518 0000 0000 220: 0000 0000 103E 0000 0000 0000 0000 0000 0000 0000 230: 0000 0000 0000 0000 0001 1000 0000 0000 0000 0000 240: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 250: 0000 0000 0000 0000 0000 40A5 -- SMART_READ_DATA --------------------------------------------------------- +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 000: 10 00 01 2F 00 C8 C8 00 00 00 00 00 00 00 03 27 010: 00 B1 AB 1D 10 00 00 00 00 00 04 32 00 62 62 9E 020: 08 00 00 00 00 00 05 33 00 C8 C8 00 00 00 00 00 030: 00 00 07 2E 00 C8 C8 00 00 00 00 00 00 00 09 32 040: 00 4F 4F 3D 3E 00 00 00 00 00 0A 32 00 64 64 00 050: 00 00 00 00 00 00 0B 32 00 64 64 00 00 00 00 00 060: 00 00 0C 32 00 64 64 49 01 00 00 00 00 00 C0 32 070: 00 C8 C8 E0 00 00 00 00 00 00 C1 32 00 C2 C2 C7 080: 50 00 00 00 00 00 C2 22 00 75 62 1E 00 00 00 00 090: 00 00 C4 32 00 C8 C8 00 00 00 00 00 00 00 C5 32 0A0: 00 C8 C8 00 00 00 00 00 00 00 C6 30 00 C8 C8 00 0B0: 00 00 00 00 00 00 C7 32 00 C8 C8 00 00 00 00 00 0C0: 00 00 C8 08 00 C8 C8 00 00 00 00 00 00 00 00 00 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 160: 00 00 00 00 00 00 00 00 00 00 82 00 50 64 01 7B 170: 03 00 01 00 02 FF 05 04 01 00 00 00 00 00 00 00 180: 00 00 01 04 00 00 00 00 00 00 00 00 00 00 00 00 190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 98 -- SMART_READ_THRESHOLD ---------------------------------------------------- +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 000: 10 00 01 33 C8 C8 C8 C8 00 00 00 00 00 00 03 15 010: 00 00 00 00 00 00 00 00 00 00 04 00 00 00 00 00 020: 00 00 00 00 00 00 05 8C 00 00 00 00 00 00 00 00 030: 00 00 07 00 C8 C8 C8 C8 00 00 00 00 00 00 09 00 040: 00 00 00 00 00 00 00 00 00 00 0A 00 00 00 00 00 050: 00 00 00 00 00 00 0B 00 00 00 00 00 00 00 00 00 060: 00 00 0C 00 00 00 00 00 00 00 00 00 00 00 C0 00 070: 00 00 00 00 00 00 00 00 00 00 C1 00 00 00 00 00 080: 00 00 00 00 00 00 C2 00 00 00 00 00 00 00 00 00 090: 00 00 C4 00 00 00 00 00 00 00 00 00 00 00 C5 00 0A0: 00 00 00 00 00 00 00 00 00 00 C6 00 00 00 00 00 0B0: 00 00 00 00 00 00 C7 00 00 00 00 00 00 00 00 00 0C0: 00 00 C8 00 C8 C8 C8 C8 00 00 00 00 00 00 00 00 0D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 110: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 120: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 130: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 140: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 150: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5D

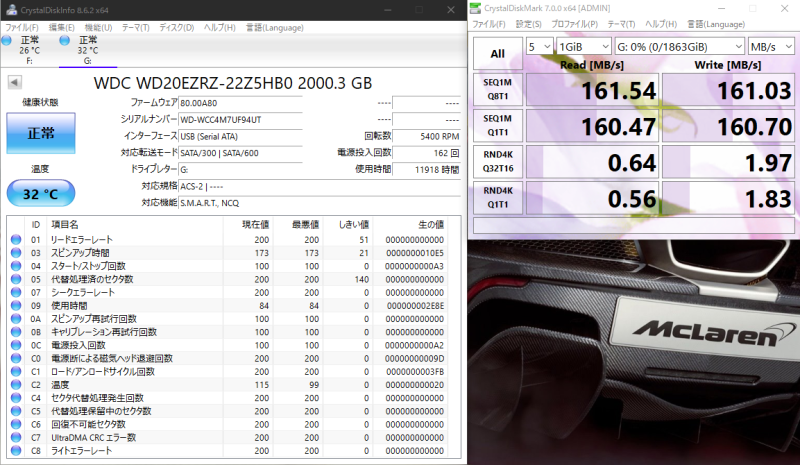

WESTERN DIGITAL WDC WD20EZRZ-22Z5B0 2000.3GB

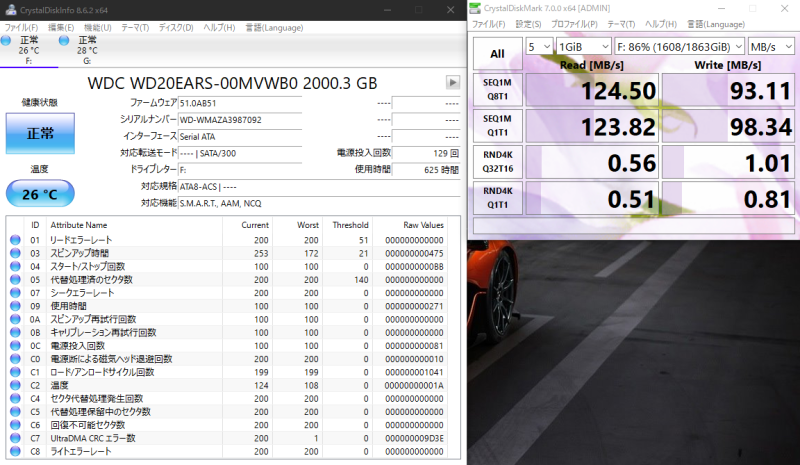

WESTERN DIGITAL WDC WD20EARS-00MVWB0 2000.3GB

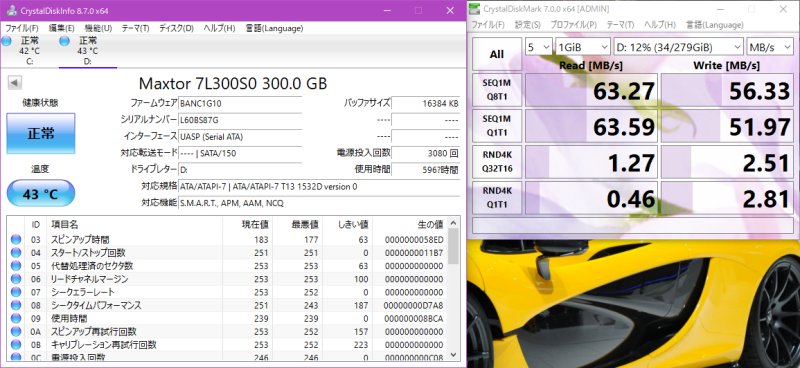

Maxtor MaXLine III SATA/150 300GB
CrystalDiskInfo
---------------------------------------------------------------------------- CrystalDiskInfo 8.7.0 (C) 2008-2020 hiyohiyo Crystal Dew World: https://crystalmark.info/ ---------------------------------------------------------------------------- OS : Windows 10 Professional [10.0 Build 20197] (x64) Date : 2020/08/26 15:30:38 -- Controller Map ---------------------------------------------------------- - Microsoft 記憶域コントローラー [SCSI] - Microsoft VHD ループバック コントローラー [SCSI] - Intel Chipset SATA RAID Controller [SCSI] - USB 接続 SCSI (UAS) マス ストレージ デバイス [SCSI] - Maxtor 7 L300S0 SCSI Disk Device -- Disk List --------------------------------------------------------------- (01) Maxtor 7L300S0 : 300.0 GB [1/2/0, sa1] ---------------------------------------------------------------------------- (01) Maxtor 7L300S0 ---------------------------------------------------------------------------- Model : Maxtor 7L300S0 Firmware : BANC1G10 Serial Number : L60BS87G Disk Size : 300.0 GB (8.4/137.4/300.0/300.0) Buffer Size : 16384 KB Queue Depth : 32 # of Sectors : 586072368 Rotation Rate : 不明 Interface : UASP (Serial ATA) Major Version : ATA/ATAPI-7 Minor Version : ATA/ATAPI-7 T13 1532D version 0 Transfer Mode : ---- | SATA/150 Power On Hours : 35788 時間 Power On Count : 3080 回 Temperature : 44 C (111 F) Health Status : 正常 Features : S.M.A.R.T., APM, AAM, 48bit LBA, NCQ APM Level : 0000h [OFF] AAM Level : C0C0h [ON] Drive Letter : D: -- S.M.A.R.T. -------------------------------------------------------------- ID Cur Wor Thr RawValues(6) Attribute Name 03 183 177 _63 0000000058ED スピンアップ時間 04 251 251 __0 0000000011B7 スタート/ストップ回数 05 253 253 _63 000000000000 代替処理済のセクタ数 06 253 253 100 000000000000 リードチャネルマージン 07 253 252 __0 000000000000 シークエラーレート 08 251 243 187 00000000FABC シークタイムパフォーマンス 09 239 239 __0 000000008BCC 使用時間 0A 253 252 157 000000000000 スピンアップ再試行回数 0B 253 252 223 000000000000 キャリブレーション再試行回数 0C 246 246 __0 000000000C08 電源投入回数 C0 253 253 __0 000000000000 電源断による磁気ヘッド退避回数 C1 253 253 __0 000000000000 ロード/アンロードサイクル回数 C2 _44 253 __0 00000000002C 温度 C3 253 252 __0 000000002300 ハードウェア ECC 検知エラー回数 C4 253 253 __0 000000000000 セクタ代替処理発生回数 C5 253 253 __0 000000000000 代替処理保留中のセクタ数 C6 253 253 __0 000000000000 回復不可能セクタ数 C7 199 195 __0 000000000005 UltraDMA CRC エラー数 C8 253 252 __0 000000000000 ライトエラーレート C9 253 252 __0 000000000000 ソフトリードエラーレート CA 253 252 __0 000000000000 データアドレスマークエラー CB 253 252 180 000000000000 ECC エラーレート CC 253 252 __0 000000000000 ソフトウェア ECC 訂正エラー数 CD 253 252 __0 000000000000 サーマルアスペリティレート CF 253 252 __0 000000000000 スピン最大電流 D0 253 252 __0 000000000000 スピンバズ D1 235 235 __0 0000000000E1 オフラインシークパフォーマンス D2 253 252 __0 000000000000 ベンダ固有 D3 253 252 __0 000000000000 書き込み中に加わった大きな振動 D4 253 252 __0 000000000000 書き込み中に加わった大きな衝撃 -- IDENTIFY_DEVICE --------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 000: 0040 3FFF C837 0010 0000 0000 003F 0000 0000 0000 010: 4C36 3042 5338 3747 2020 2020 2020 2020 2020 2020 020: 0003 8000 0004 4241 4E43 3147 3130 4D61 7874 6F72 030: 2037 4C33 3030 5330 2020 2020 2020 2020 2020 2020 040: 2020 2020 2020 2020 2020 2020 2020 8010 0000 2F00 050: 4000 0200 0000 0007 3FFF 0010 003F FC10 00FB 0100 060: FFFF 0FFF 0000 0007 0003 0078 0078 0078 0078 0000 070: 0000 0000 0000 0000 0000 001F 0102 0000 0040 0000 080: 00FE 001E 7C6B 7F09 4673 7C69 3E01 4663 203F 0000 090: 0000 0000 FFFE 0000 C0C0 0008 0029 00D5 C350 0000 100: C130 22EE 0000 0000 0029 0000 0000 0000 0000 0000 110: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 120: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0000 130: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 140: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 150: 0113 0000 FFFF FFFF 0000 0000 0000 0000 0000 0000 160: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 170: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 180: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 190: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 200: 0000 0000 0000 0000 0000 0000 0021 0000 0000 0000 210: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 220: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 230: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 240: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 250: 0000 0000 0000 0000 0000 D3A5 -- SMART_READ_DATA --------------------------------------------------------- +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 000: 10 00 03 27 00 B7 B1 ED 58 00 00 00 00 00 04 32 010: 00 FB FB B7 11 00 00 00 00 00 05 33 00 FD FD 00 020: 00 00 00 00 00 00 06 01 00 FD FD 00 00 00 00 00 030: 00 00 07 0A 00 FD FC 00 00 00 00 00 00 00 08 27 040: 00 FB F3 BC FA 00 00 00 00 00 09 32 00 EF EF CC 050: 8B 00 00 00 00 00 0A 2B 00 FD FC 00 00 00 00 00 060: 00 00 0B 2B 00 FD FC 00 00 00 00 00 00 00 0C 32 070: 00 F6 F6 08 0C 00 00 00 00 00 C0 32 00 FD FD 00 080: 00 00 00 00 00 00 C1 32 00 FD FD 00 00 00 00 00 090: 00 00 C2 32 00 2C FD 2C 00 00 00 00 00 00 C3 0A 0A0: 00 FD FC 00 23 00 00 00 00 00 C4 08 00 FD FD 00 0B0: 00 00 00 00 00 00 C5 08 00 FD FD 00 00 00 00 00 0C0: 00 00 C6 08 00 FD FD 00 00 00 00 00 00 00 C7 08 0D0: 00 C7 C3 05 00 00 00 00 00 00 C8 0A 00 FD FC 00 0E0: 00 00 00 00 00 00 C9 0A 00 FD FC 00 00 00 00 00 0F0: 00 00 CA 0A 00 FD FC 00 00 00 00 00 00 00 CB 0B 100: 00 FD FC 00 00 00 00 00 00 00 CC 0A 00 FD FC 00 110: 00 00 00 00 00 00 CD 0A 00 FD FC 00 00 00 00 00 120: 00 00 CF 2A 00 FD FC 00 00 00 00 00 00 00 D0 2A 130: 00 FD FC 00 00 00 00 00 00 00 D1 24 00 EB EB E1 140: 00 00 00 00 00 00 D2 32 00 FD FC 00 00 00 00 00 150: 00 00 D3 32 00 FD FC 00 00 00 00 00 00 00 D4 32 160: 00 FD FC 00 00 00 00 00 00 00 80 00 EB 08 01 5B 170: 03 00 01 00 02 76 00 00 00 00 00 00 00 00 00 00 180: 00 00 3B 00 00 00 CE FE 31 01 00 01 00 00 01 00 190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2F C1 1A0: EE 22 00 00 00 00 00 00 30 00 30 C1 EE 22 30 00 1B0: 00 00 30 C1 EE 22 00 00 00 00 00 00 00 00 00 00 1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 06 00 01 -- SMART_READ_THRESHOLD ---------------------------------------------------- +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F 000: 10 00 03 3F 00 00 00 00 00 00 00 00 00 00 04 00 010: 00 00 00 00 00 00 00 00 00 00 05 3F 00 00 00 00 020: 00 00 00 00 00 00 06 64 00 00 00 00 00 00 00 00 030: 00 00 07 00 00 00 00 00 00 00 00 00 00 00 08 BB 040: 00 00 00 00 00 00 00 00 00 00 09 00 00 00 00 00 050: 00 00 00 00 00 00 0A 9D 00 00 00 00 00 00 00 00 060: 00 00 0B DF 00 00 00 00 00 00 00 00 00 00 0C 00 070: 00 00 00 00 00 00 00 00 00 00 C0 00 00 00 00 00 080: 00 00 00 00 00 00 C1 00 00 00 00 00 00 00 00 00 090: 00 00 C2 00 00 00 00 00 00 00 00 00 00 00 C3 00 0A0: 00 00 00 00 00 00 00 00 00 00 C4 00 00 00 00 00 0B0: 00 00 00 00 00 00 C5 00 00 00 00 00 00 00 00 00 0C0: 00 00 C6 00 00 00 00 00 00 00 00 00 00 00 C7 00 0D0: 00 00 00 00 00 00 00 00 00 00 C8 00 00 00 00 00 0E0: 00 00 00 00 00 00 C9 00 00 00 00 00 00 00 00 00 0F0: 00 00 CA 00 00 00 00 00 00 00 00 00 00 00 CB B4 100: 00 00 00 00 00 00 00 00 00 00 CC 00 00 00 00 00 110: 00 00 00 00 00 00 CD 00 00 00 00 00 00 00 00 00 120: 00 00 CF 00 00 00 00 00 00 00 00 00 00 00 D0 00 130: 00 00 00 00 00 00 00 00 00 00 D1 00 00 00 00 00 140: 00 00 00 00 00 00 D2 00 00 00 00 00 00 00 00 00 150: 00 00 D3 00 00 00 00 00 00 00 00 00 00 00 D4 00 160: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 170: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 180: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 190: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 14
smartctl
smartctl 7.1 2019-12-30 r5022 [x86_64-w64-mingw32-w10-b20197] (sf-7.1-1) Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Maxtor MaXLine III (ATA/133 and SATA/150) Device Model: Maxtor 7L300S0 Serial Number: L60BS87G Firmware Version: BANC1G10 User Capacity: 300,069,052,416 bytes [300 GB] Sector Size: 512 bytes logical/physical Device is: In smartctl database [for details use: -P show] ATA Version is: ATA/ATAPI-7 T13/1532D revision 0 Local Time is: Wed Aug 26 15:19:46 2020 SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART Status not supported: Incomplete response, ATA output registers missing SMART overall-health self-assessment test result: PASSED Warning: This result is based on an Attribute check. General SMART Values: Offline data collection status: (0x80) Offline data collection activity was never started. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 2283) seconds. Offline data collection capabilities: (0x5b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. No Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 118) minutes. SCT capabilities: (0x0021) SCT Status supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 3 Spin_Up_Time 0x0027 183 177 063 Pre-fail Always - 22765 4 Start_Stop_Count 0x0032 251 251 000 Old_age Always - 4535 5 Reallocated_Sector_Ct 0x0033 253 253 063 Pre-fail Always - 0 6 Read_Channel_Margin 0x0001 253 253 100 Pre-fail Offline - 0 7 Seek_Error_Rate 0x000a 253 252 000 Old_age Always - 0 8 Seek_Time_Performance 0x0027 250 243 187 Pre-fail Always - 48005 9 Power_On_Minutes 0x0032 239 239 000 Old_age Always - 596h+17m 10 Spin_Retry_Count 0x002b 253 252 157 Pre-fail Always - 0 11 Calibration_Retry_Count 0x002b 253 252 223 Pre-fail Always - 0 12 Power_Cycle_Count 0x0032 246 246 000 Old_age Always - 3080 192 Power-Off_Retract_Count 0x0032 253 253 000 Old_age Always - 0 193 Load_Cycle_Count 0x0032 253 253 000 Old_age Always - 0 194 Temperature_Celsius 0x0032 044 253 000 Old_age Always - 41 195 Hardware_ECC_Recovered 0x000a 253 252 000 Old_age Always - 4499 196 Reallocated_Event_Count 0x0008 253 253 000 Old_age Offline - 0 197 Current_Pending_Sector 0x0008 253 253 000 Old_age Offline - 0 198 Offline_Uncorrectable 0x0008 253 253 000 Old_age Offline - 0 199 UDMA_CRC_Error_Count 0x0008 199 195 000 Old_age Offline - 5 200 Multi_Zone_Error_Rate 0x000a 253 252 000 Old_age Always - 0 201 Soft_Read_Error_Rate 0x000a 253 252 000 Old_age Always - 0 202 Data_Address_Mark_Errs 0x000a 253 252 000 Old_age Always - 0 203 Run_Out_Cancel 0x000b 253 252 180 Pre-fail Always - 0 204 Soft_ECC_Correction 0x000a 253 252 000 Old_age Always - 0 205 Thermal_Asperity_Rate 0x000a 253 252 000 Old_age Always - 0 207 Spin_High_Current 0x002a 253 252 000 Old_age Always - 0 208 Spin_Buzz 0x002a 253 252 000 Old_age Always - 0 209 Offline_Seek_Performnce 0x0024 235 235 000 Old_age Offline - 225 210 Unknown_Attribute 0x0032 253 252 000 Old_age Always - 0 211 Unknown_Attribute 0x0032 253 252 000 Old_age Always - 0 212 Unknown_Attribute 0x0032 253 252 000 Old_age Always - 0 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Short offline Completed without error 00% 891 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay.
